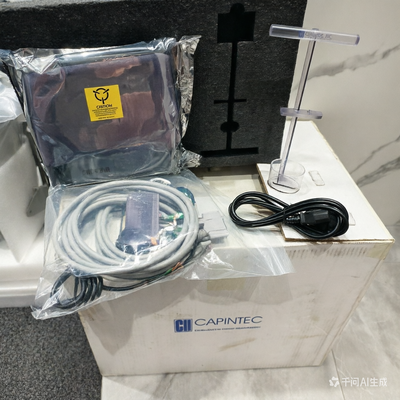

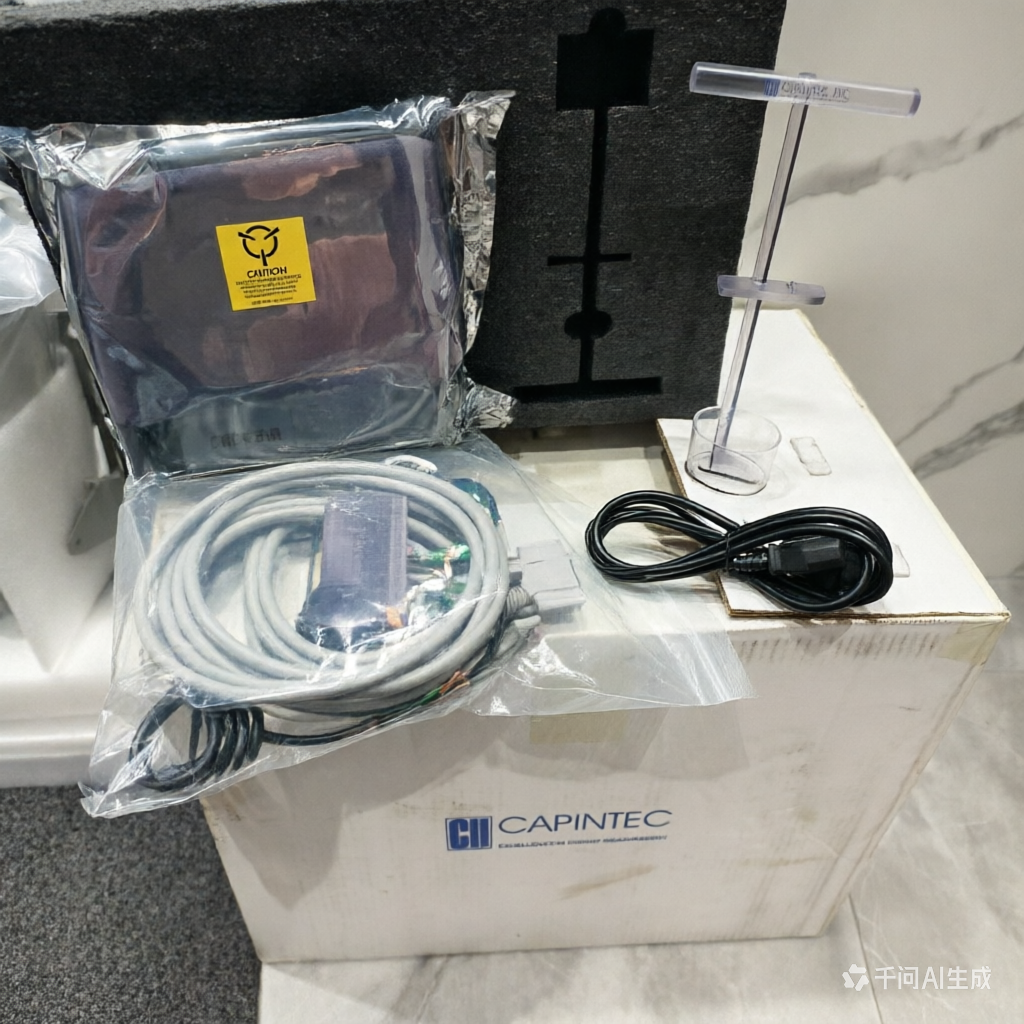

High-Accuracy Hot Cell Dose Calibrator for PET and SPECT Tracers

The High-Accuracy Hot Cell Dose Calibrator is specifically optimized for the unique demands of PET (positron emission tomography) and SPECT (single-photon emission computed tomography) tracer preparation. PET isotopes such as F-18 (half-life 110 minutes), Ga-68 (68 minutes), and Cu-64 (12.7 hours) require rapid, accurate measurement because their short half-lives mean that even brief delays result in significant decay correction calculations. This dose calibrator combines fast response time — stable readings in under 3 seconds — with high accuracy (±3% for PET isotopes) to ensure that each patient receives the prescribed activity at the time of injection. The instrument is equally capable for SPECT tracers including Tc-99m (6 hours) and I-123 (13.2 hours), where measurement precision directly impacts image quality and diagnostic accuracy.

This calibrator is designed for PET/CT departments, SPECT/CT departments, and hybrid imaging centers that use both modalities. Primary applications include measuring F-18 FDG doses for oncology imaging, quantifying Ga-68 DOTATATE for neuroendocrine tumor imaging, and verifying Cu-64 tracer activity for PET studies of copper metabolism. For SPECT applications, the calibrator measures Tc-99m eluates from generators, verifies Tc-99m-labeled compounds (MDP, sestamibi, MAG3, etc.), and quantifies I-123 NaI capsules for thyroid imaging. The instrument also supports theranostic applications where PET isotopes are used for treatment planning before therapy with Lu-177, Y-90, or Ac-225. Additional applications include measuring radiolabeling yield during tracer synthesis, verifying activity concentrations for quality control samples, and performing decay correction calculations for time-delayed imaging protocols.

The High-Accuracy Hot Cell Dose Calibrator achieves measurement stability in as little as 2 seconds for F-18 — critical for PET workflows where each minute of measurement time reduces the activity available for the patient due to radioactive decay. For example, a 5-second measurement delay in an F-18 dose might seem trivial, but over 50 doses per morning, the cumulative decay loss could be equivalent to an entire patient dose. The fast response of this instrument maximizes the useful activity delivered to patients. The calibrator's accuracy for PET isotopes is enhanced by energy-compensated electronics that correctly account for the annihilation radiation produced by positron-emitting isotopes. Many standard dose calibrators over-respond or under-respond to these high-energy photons, but this instrument's optimized calibration yields ±3% accuracy for F-18, Ga-68, and other PET emitters. The instrument includes a built-in decay correction calculator: the user enters the desired activity and administration time, and the calibrator displays the required current activity. This feature eliminates manual decay correction calculations, which are a common source of dosing errors in busy PET centers. For SPECT isotopes, the calibrator maintains ±5% accuracy across activities from 0.1 mCi to 10 Ci. The auto-ranging function automatically selects the appropriate measurement range, and the nuclide-specific calibration ensures that a Tc-99m reading of 20 mCi correctly reflects the actual activity. The remote display shows both the current measurement and the decay-corrected activity at the planned administration time, allowing the technologist to confirm that the dose will be correct for the patient's appointment slot. The instrument includes data logging and printer output for dose records, and its corrosion-resistant chamber withstands daily decontamination. For nuclear medicine departments, the key benefits are improved patient care through precise dosing, reduced waste because less radiopharmaceutical is discarded due to measurement errors, and faster workflow that allows more patients to be scheduled. The calibrator's optimized performance for PET tracers makes it particularly valuable for high-volume centers
