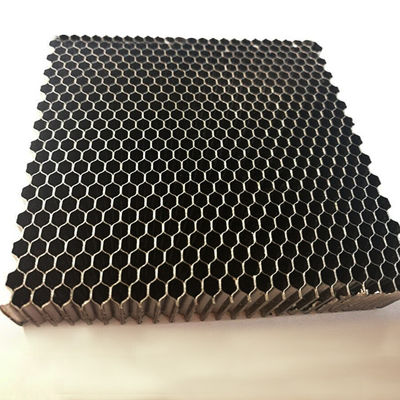

Low Pass Transfer Function Honeycomb Vent Offering Air Ventilation and EMI Shielding Solutions for Electrical Distribution Panels

Product Description:

The Honeycomb Waveguide Air Vents are specially designed components that serve a dual purpose of air ventilation and electromagnetic interference (EMI) shielding. These vents are an essential solution for various electronic applications where effective airflow management and protection against electromagnetic waves are critical. By incorporating advanced honeycomb structures, these air vents provide superior performance in maintaining optimal operating temperatures while simultaneously shielding sensitive electronic components from disruptive electromagnetic interference.

At the core of this product is the honeycomb window with frame design, which ensures a robust and reliable structure for efficient airflow and EMI protection. The honeycomb pattern allows for maximum air passage while significantly reducing the penetration of electromagnetic waves. This makes the honeycomb window with frame an ideal choice for environments where both ventilation and EMI shielding are necessary. The frame provides added durability and ease of installation, ensuring that the vents remain securely in place within the enclosure or device housing.

One of the standout characteristics of these Honeycomb Waveguide Air Vents is their ability to shield electromagnetic waves effectively. The honeycomb configuration acts as an RF cage ventilation system, which means it can block high-frequency electromagnetic radiation while permitting the free flow of air. This RF cage ventilation is particularly beneficial in applications involving communication devices and electronics enclosures, where maintaining signal integrity and preventing electromagnetic interference is paramount.

The product supports multiple transfer functions, including all pass and low pass filtering capabilities. This versatility allows the Honeycomb Waveguide Air Vents to be customized based on specific requirements, whether the goal is to allow a broad range of frequencies to pass or to limit certain high-frequency signals. This adaptability makes the vents suitable for a wide spectrum of electronic applications, ensuring that the devices remain protected without compromising ventilation efficiency.

Applications for these air vents are extensive. They are commonly used in electronics enclosures where heat dissipation is necessary to prevent overheating of components, while simultaneously offering EMI shielding to maintain device performance and compliance with regulatory standards. Communication devices, which are particularly sensitive to electromagnetic interference, benefit immensely from the RF cage ventilation provided by the honeycomb window with frame design. This ensures uninterrupted signal transmission and reception, enhancing overall device functionality.

Furthermore, the Honeycomb Waveguide Air Vents are available as samples, enabling designers and engineers to evaluate their performance within specific applications before committing to large-scale deployment. This sample availability ensures that product integration is seamless and meets the precise ventilation and EMI shielding needs of various projects.

In summary, the Honeycomb Waveguide Air Vents combine advanced honeycomb structures with a sturdy frame to deliver exceptional air ventilation and EMI shielding performance. Their unique ability to function as an RF cage ventilation system, coupled with all pass and low pass transfer functions, makes them indispensable in protecting electronics enclosures and communication devices from electromagnetic interference while ensuring adequate airflow. With the option of sample availability, these vents offer a reliable and customizable solution for modern electronic and communication applications.

Features:

• Product Name: Honeycomb Waveguide Air Vents
• Selling Units: Multiple Of 4
• Warranty: 3 Years
• Frame Options: L Type, Z Type, or Without Frame
• Material: Aluminum or Stainless Steel
• Designed for MRI Room Shielding applications
• Provides efficient RF cage ventilation to maintain optimal electromagnetic performance
• Features a Honeycomb vent design for superior airflow and shielding
• Incorporates a waveguide window to block RF interference while allowing ventilation

Technical Parameters:

Applications:

The Jovi Honeycomb Waveguide Air Vents, model number 1-CF-4, are specially designed for advanced MRI room shielding applications, offering exceptional durability and high shielding effectiveness ranging from 14KHz to 40GHz with up to 100dB attenuation. These ventilation windows are crafted using premium microwave absorbing materials, ensuring optimal input impedance and superior performance in sensitive electromagnetic environments. Originating from China and certified by CE, these honeycomb windows with frame are ideal for maintaining ventilation while preventing electromagnetic interference.

These waveguide windows are essential components in medical imaging facilities where precise shielding is critical. The ventilation window design allows for efficient airflow and heat dissipation within MRI rooms without compromising the shielding integrity. Their robust construction guarantees long-lasting durability even in demanding environments, making them a reliable choice for hospitals, research labs, and diagnostic centers.

Overall, the Jovi Honeycomb Waveguide Air Vents provide a perfect blend of ventilation efficiency, electromagnetic shielding, and durability, making them indispensable for any MRI room shielding or other electromagnetic protection applications requiring waveguide windows or honeycomb windows with frame.

Packing and Shipping:

Our Honeycomb Waveguide Air Vents are carefully packaged to ensure maximum protection during transit. Each unit is individually wrapped in anti-static material and securely placed in a custom-fitted box to prevent movement and damage.

The packaging materials are selected to be eco-friendly and durable, providing cushioning against shocks and vibrations. For bulk orders, the air vents are packed in sturdy cartons with adequate padding between units to maintain product integrity.

Shipping is handled by reliable carriers with tracking options available to ensure timely delivery. We offer multiple shipping methods to accommodate your needs, including standard, expedited, and international shipping.

Upon receipt, please inspect the packaging for any signs of damage before opening. If you encounter any issues, contact our customer service team immediately for assistance.

FAQ:

Q1: What is the brand and model number of the Honeycomb Waveguide Air Vents?

A1: The Honeycomb Waveguide Air Vents are branded Jovi, with the model number 1-CF-4.

Q2: Where are the Honeycomb Waveguide Air Vents manufactured?

A2: These air vents are manufactured in China.

Q3: What certifications do the Honeycomb Waveguide Air Vents have?

A3: The product is CE certified, ensuring it meets European safety and quality standards.

Q4: What is the minimum order quantity and price range for the Honeycomb Waveguide Air Vents?

A4: The minimum order quantity is 1 piece, with prices ranging from $130 to $380 per piece depending on specifications.

Q5: What are the packaging options and delivery time for this product?

A5: The air vents are packaged in wooden cases or customized packaging as per customer requirements, with a delivery time of 5-8 work days.
