Modular Robotic Assembly Unit for High-Radiation Hot Cell Environments

  • Modular Robotic Assembly Unit for High-Radiation Hot Cell Environments
Lugar de origem CHINA
Marca JOVI
Número do modelo 1-CF-100
Quantidade de ordem mínima 1 conjunto
Preço USD50000-62000/PC
Detalhes da embalagem em caixa de madeira
Tempo de entrega 30 dias úteis após receber seu pagamento
Termos de pagamento L/c, t/t
Habilidade da fonte 10pcs por mês

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Destacar

modular robotic assembly unit

,

hot cell robotic unit

,

high-radiation robotic assembly
Deixe um recado
Descrição de produto

Product Description:

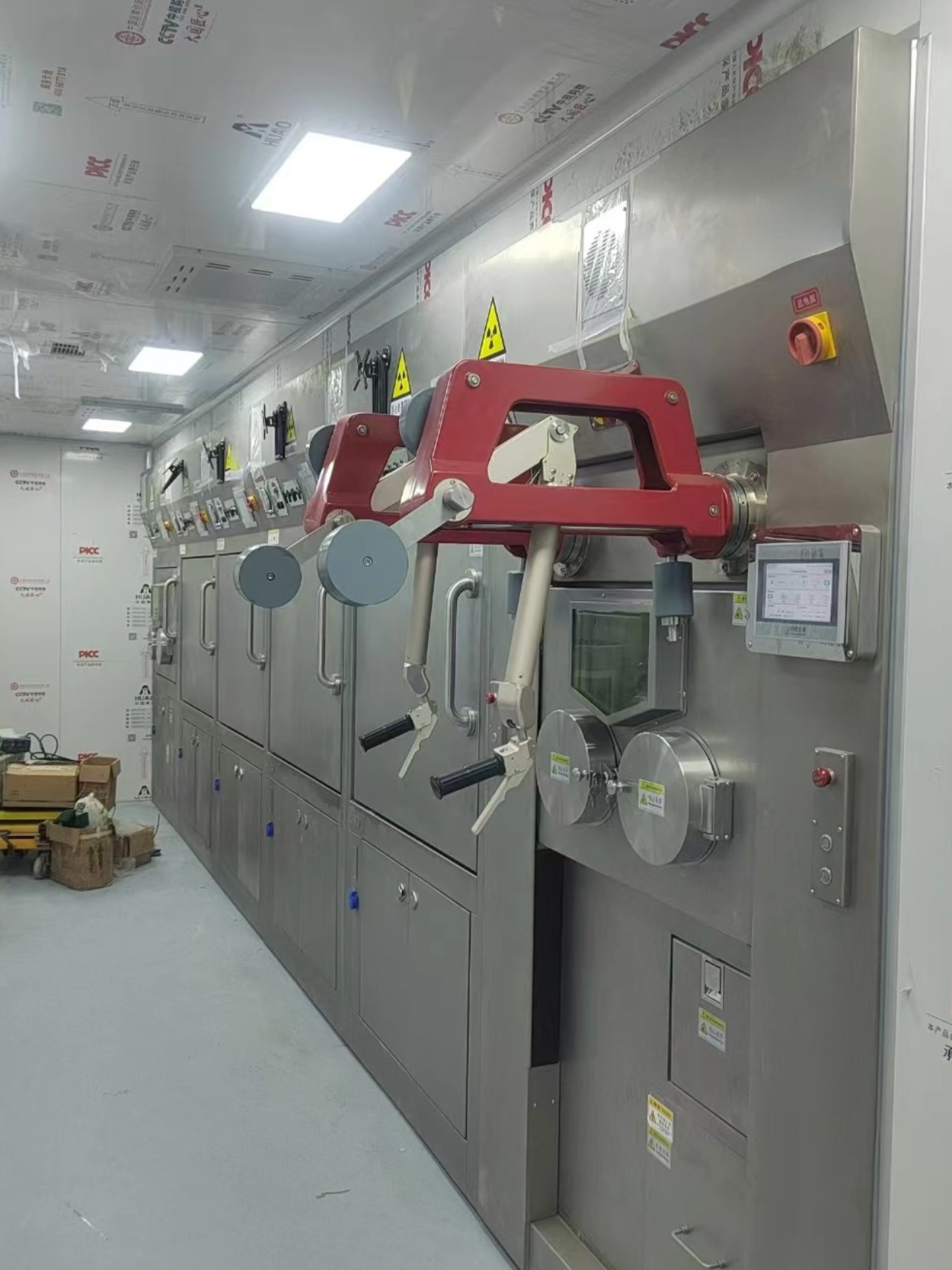

The hot cell consists of three structural sections. The control area is located in the upper part of the hot cell, equipped with an independent ventilation system, hot cell control unit, radioactive gas shut-off valve, and internal radiation dose monitoring and interlock system.
The working area is situated in the middle section, where operators access by opening the front shielding door. The spacious internal design accommodates the installation of all synthesizers available on the market.
The auxiliary area is located in the lower section, providing supporting functions for the hot cell.
High-standard lead shielding and bioclean safety requirements not only comply with ICRP radiation safety standards but also ensure a GMP-compliant clean pharmaceutical environment for the synthesis of positron-emitting radiopharmaceuticals for PET.

 Modular Robotic Assembly Unit for High-Radiation Hot Cell Environments 0







Product Detail:



cGMP-Compliant Bioclean Work Area One independent synthesis lead enclosure constructed from seamless welded stainless steel
Cleanliness Class: Class C
Negative Pressure: 50 Pa – 100 Pa
Airflow Volume: 600 m³/h
Sealing: Isolated clean stainless steel inner chamber
Air Supply: 99.95% HEPA filtration
Exhaust: HEPA + activated carbon filtration
ICRP-Compliant Radiation Shielding
Front Shielding: 100 mm Pb
Side Shielding: 100 mm Pb
Surface Radiation Dose: < 10 µSv/h
Radiation Dose at 1 m Distance: < 0.5 µSv/h
Ergonomically Designed Control Panel
Hot Cell
Control: Centralized
integrated touchscreen HMI
(Human-Machine Interface)

Dimensions:
Internal Dimensions: 850 mm (W) × 590 mm (D) × 680 mm (H)
External Dimensions: 1125 mm (W) × 1078 mm (D) × 2400 mm (H)

RFQ:

1. We can offer customized design size and lead equivalent hot cell for our customer.
2. After confirming the order, we will offer detail drawing of the hot cell to our customer and then arrange production
